Fox

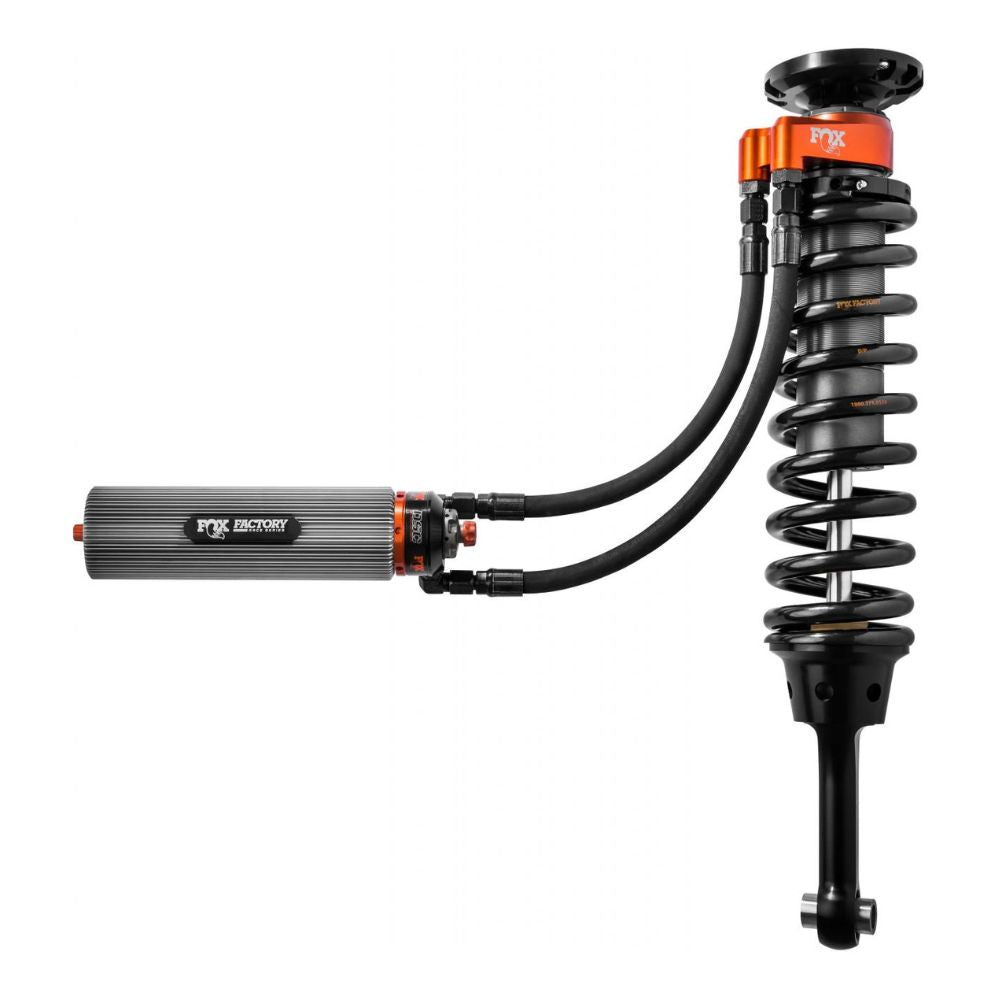

Fox Factory Race Series 3.0 Internal Bypass Coil-Over Shocks (Pair) Adjustable - Front

Fox Factory Race Series 3.0 Internal Bypass Coil-Over Shocks (Pair) Adjustable - Front

SKU:883-06-175

Regular price $6,799.00 AUD
Regular price Sale price $6,799.00 AUD
Sale Sold out
Taxes included.

NOTE: The actual product appearance may differ from the image shown.

FOX Factory Race Series 3.0 Internal Bypass suspension for the Chevrolet/GM 1500 and 14th generation Ford F-150 deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

A Recirculating Reservoir Bridge enables continuous exchange of shock fluid between the finned external reservoir and body using checked ports, keeping shock temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies. The DSC adjuster allows you to dial in your 1500 for load, environment, and driving style.

FOX Internal Bypass shocks deliver the support and confidence you need while driving Mach-3 through rugged terrain. Experience race-bred performance next time you leave the pavement.

SPECIFICATIONS

  • Body: 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel
  • Shaft: 7/8" hard chrome plated heat-treated alloy steel
  • Seals: Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions
  • Adjuster Type: DSC - Dual Speed Compression
  • Top Mount: OEM
  • Fitment notes: Requires Upper Control Arm | Includes Universal Bracket | AT4 Model Fits 1" Lift Only

VEHICLE FITMENT

  • Chevrolet Silverado 1500 2019-2024
  • Ford F150 2021-2024
  • Ford F150 Raptor 2017-2018
